※ Specifications are subject to change without notice or obligations.
※ AOR Ltd. will provide no technical support for the creation of web apps.
※ 仕様は予告なく変更する場合があります。
※ Webアプリの作成に関して、エーオーアールによる技術サポートはありません。
1 | Operating environment (supplied hardware) |
Single board computer | Raspberry Pi 3 Model B+ |
Audio input adapter | USB audio adapter to connect to the computer's USB port | ||
Boot media | microSDHC 16GB (Class 10 UHS-I A1), installed in the computer's card slot | ||
2 | Compatible receiver (not supplied) |
AOR's AR-DV1 Digital Voice Receiver, firmware 1903A or later (Only one receiver can be controlled per system) (Not compatible with the AR-DV10 hand-held receiver as some commands are different) |
|
3 | Connections with receiver | Receiver control | USB Type-A socket (computer side) |
Audio input | 3.5mmφ jack (mono input via USB audio adapter) | ||

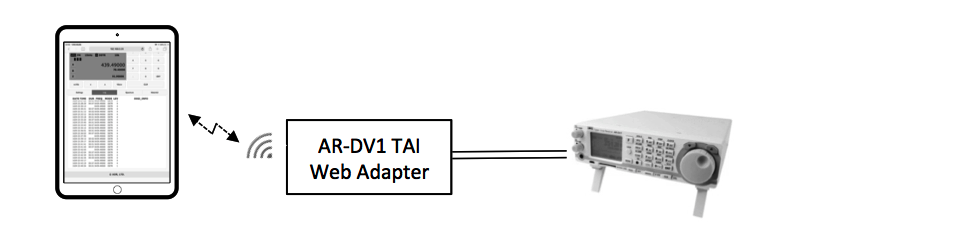

4 | Network connection | Wireless access point | 802.11b/g/a - 2.4/5GHz WPA2 (only possible mode) DHCP service |
LAN | 10/100/1000BASE-T DHCP client (Static IP setup via router's DHCP is recommended) | ||
5 | Computer power supply | AC adapter | DC5V 2.5A, AC100-240V(50/60Hz) with microUSB plug |
6 | PC case & other dimensions | Case 62mm(W) x 26mm(H) x 92mm(D) | |
When inserted, the USB audio adapter adds another 33mm to the case's length. | |||
7 | Boot media | MicroSDHC card 16GB Class 10 UHS-I A1 | |
AR-DV1 TAI OS (built-in software) | |||
Base operating system package: Raspbian Stretch Lite 2018-11-13 Kernel 4.14 | |||
8 | Software configuration | Node.js web server, audio server | |
JavaScript library for AR-DV1 receiver VFO mode | |||
jQuery, jQuery.mobile, Chart.js, sdr.js, mathbox.js, moment.js, and others. | |||
9 | Number of concurrent clients | 1 (either via wifi or LAN) | |
10 | Communication ports | Control | TCP 3000 (fixed) |
Audio transmission | TCP 3000 (fixed) | ||
11 | Confirmed browser compatibility (as of Dec.2018) |
- iPad -- Safari | |
- Kindle Fire HD -- Amazon Silk* | |||
- Android Tablet -- Chrome* | |||
( *: The built-in sample app has limited screen size, therefore not recommended.) | |||
◎ WebAPI is available for various browsers that support HTML5 and recent JavaScript for creating Web apps for different screen sizes. |
1 | 動作環境 (セット同梱品) |
コンピュータ | Raspberry Pi 3 Model B+ |
オーディオ入力アダプタ | Plugable USB オーディオ アダプタ、コンピュータのUSB端子に直接に接続 | ||
起動用メディア | microSDHC 16GB (Class 10 UHS-I A1)コンピュータのカードスロットに装着 | ||
2 | 対象受信機 (セットには含みません) |
AOR AR-DV1 デジタル ボイス レーシーバー 1台ファームウェア 1903A以降 (1台のみ制御可能) ※ AR-DV10 ハンディ デジタル レシーバーは、一部コマンド非互換 |
|
3 | 受信機との接続 | コントロール | USB Type-A ジャック (コンピュータ) |
オーディオ入力 | 3.5mmφ ジャック (オーディオ入力アダプタ、モノラル入力) | ||
4 | ネットワーク接続 | ワイヤレスアクセスポイント | 802.11b/g/a - 2.4/5GHz WPA2 (他のモードは不使用) DHCPサービス動作 |
LAN | 10/100/1000BASE-T DHCP クライアント動作 (IPアドレス固定割当設定を推奨) | ||
5 | コンピュータの電源 | ACアダプタ | DC5V 2.5A, AC100-240V(50/60Hz) microUSBプラグ |
6 | コンピュータのケースほか寸法 | ケース 62mm(W) x 26mm(H) x 92mm(D) | |
USBオーディオアダプタ(直結時)のコンピュータのケースから(D方向へ)の飛び出し寸法 約33mm | |||
7 | 起動用メディア | MicroSDHC card 16GB Class 10 UHS-I A1 | |
AR-DV1 TAI OS (ソフトウェア内蔵) | |||
ベースOSパッケージ: Raspbian Stretch Lite 2018-11-13 Kernel 4.14 | |||
8 | ソフトウェア構成概要 | Node.js Webサーバ、音声伝送サーバ | |
AR-DV1受信機 VFOモード用 JavaScriptライブラリ | |||
jQuery、jQuery.mobile、Chart.js、sdr.js、mathbox.js、moment.js、他 | |||
9 | 同時接続クライアント数 | 1 (ワイヤレス、有線LANを合わせて、原則として) | |
10 | 通信ポート | コントロール | TCP 3000 (固定) |
音声伝送 | TCP 3000 (固定) | ||
11 | サンプルWebアプリ 動作確認ブラウザ (2018/12現在) |
- iPad -- Safari | |
- Kindle Fire HD -- Amazon Silk* | |||
- Android Tablet -- Chrome* | |||
( *: 内蔵のサンプルアプリでは画面サイズに制約があり、縦横比の大きい機種等はおすすめできません) | |||
◎ WebAPIは、HTML5および最近のJavaScriptをサポートする各種のWebブラウザ向け、かつ、各種の画面サイズ向けのWebアプリの作成にお使いいただけます |
No. | Name | Description |
1 | Authenticate | Set authentication parameters |
2 | Power | Turn the receiver on or off |
3 | ReceiverState | Get the state of the receiver |
4 | Time | Set the receiver clock |
5 | Frequency | Set the receive frequency |
6 | DemodulateMode | Set the demodulation mode |
7 | IFbandwidth | Set or get the IF bandwidth |
8 | FrequencyStep | Set the frequency step |
9 | FrequencyStepAdjust | Set the step adjust value |
10 | DigitalDataOutput | Toggle the digital header information on or off and get its state |
11 | LevelSquelch | Set or get the level squelch value |
12 | Volume | Set or get the receiver volume value |
13 | VFO | Set or get the VFO parameters |
14 | DigitalAdditionalInfo | Get the digital header information |
15 | SpectrumCenter | Set or get the spectrum's center frequency |
16 | SpectrumSpan | Set or get the spectrum's span value |
17 | SpectrumData | Get the spectrum graph data |
18 | Smeter | Get the S-Meter values |
19 | ReceiverStateNotification | Set the receiver state notifications interval |
20 | Adapter | Operate the "AR-DV1 TAI Web Adapter" hardware |
21 | CTCSS | Set or get information from the tone squelch |
22 | DCS | Set or get information from the DCS squelch |
23 | DCREncryptionCode | Set or get the DCR/NXDN 15bit digital scrambling code value |
24 | TTCSlot | Set or get the slot number of the T-TC mode reception |
No. | Name | Description |
w-1 | Sound | API to get sound from the receiver |
w-2 | ReceiverState | API that gets periodic notifications from the receiver |
w-3 | DigitalAdditionalInfo | API to receive notifications when the receiver receives digital collateral information |
No. | Name | Description |
1 | Authenticate | 認証関連の操作 |
2 | Power | 受信機の電源のON/OFF |
3 | ReceiverState | 受信機の状態を取得 |
4 | Time | 受信機の時刻を操作 |
5 | Frequency | 受信周波数を操作 |
6 | DemodulateMode | 受信モードを操作 |
7 | IFbandwidth | IF帯域幅を操作 |
8 | FrequencyStep | ステップ周波数を操作 |
9 | FrequencyStepAdjust | ステップアジャストを操作 |
10 | DigitalDataOutput | デジタル付随情報の出力の設定を操作 |
11 | LevelSquelch | レベルスケルチを操作 |
12 | Volume | 受信機の音量を操作 |
13 | VFO | VFOの情報を操作 |
14 | DigitalAdditionalInfo | デジタル付随情報取得 |
15 | SpectrumCenter | スペクトラム・センター周波数を取得 |
16 | SpectrumSpan | スペクトラム・周波数スパンを取得 |
17 | SpectrumData | スペクトラムのグラフ情報を取得 |
18 | Smeter | Smeter値を操作 |
19 | ReceiverStateNotification | 受信機からの定期通知の設定を操作 |
20 | Adapter | 「AR-DV1 TAI Web Adapter」を操作 |
21 | CTCSS | トーンスケルチの設定を操作 |
22 | DCS | DCSの設定を操作 |
23 | DCREncryptionCode | デジタル簡易秘話コードの設定を操作 |
24 | TTCSlot | T-TCのスロット番号を操作 |
No. | Name | Description |
w-1 | Sound | 受信機からのサウンドを取得するAPI |
w-2 | ReceiverState | 受信機からの定期通知を受け取るAPI |
w-3 | DigitalAdditionalInfo | 受信機がデジタル付随情報を受信した時の通知を受け取るAPI |
No. | Item | Q'ty | Description |
1 | Single board computer | 1 | Raspberry Pi 3 Model B+ Product Info:https://www.raspberrypi.org/products/raspberry-pi-3-model-b-plus/ Recommendation: Use a case to prevent short circuit of terminals and/or the circuit board. Note: RPI models other than the above are not supported because the hardware configuration is different. |
2 | Case for the computer | 1 | The case for the Raspberry Pi 3 Model B+ Note: Metal cases are not advised as it weakens the WIFI connection. |
3 | USB Audio Adapter | 1 | USB AUDIO ADAPTER Product Info:https://plugable.com/products/usb-audio/ Note: Other products may not be recognized by the software. |
4 | AC Power Supply | 1 | A good quality power supply for Raspberry Pi 3 Model B+, DC5V 2.5A or more To avoid DC voltage drops, only use high quality DC cables. |
5 | USB cable | 1 | micro USB male to USB male data cable (90 degrees left angled micro USB plug recommended) Note: "Charging only" cables cannot be used. |
6 | Audio Cable | 1 | 3.5mm stereo jack cable (90 degrees angled plug recommended) |
No. | Item | Q'ty | Description |
1 | コンピュータ基板 | 1 | Raspberry Pi 3 Model B+ 製品情報ページ:https://www.raspberrypi.org/products/raspberry-pi-3-model-b-plus/ 推奨:端子や基板回路の短絡等の防止のため、対応するケースを使用してください 注意:上記以外のRPIモデルは、ハードウェア構成が異なるため対応していません |
2 | ケース | 1 | Raspberry Pi 3 Model B+ 対応ケース 注意:金属製ケースは、ワイヤレス接続の電波が弱くなるため、おすすめできません |
3 | USB オーディオアダプタ | 1 | USB オーディオ変換アダプタ 製品情報ページ:https://plugable.com/japanese/products/usb-audio/ 注意:他の製品は、ソフトウェアが認識しない場合があります |
4 | ACアダプタ | 1 | Raspberry Pi 3 Model B+ 対応ACアダプタDC5V 2.5A以上 注意:DC電圧降下を避けるために、高品質のDCケーブルをおすすめします |
5 | USB ケーブル | 1 | USB A (オス) - マイクロ B (オス) ケーブル (左向き L型プラグ 推奨) 注意:充電専用ケーブルは使用できません |
6 | オーディオ ケーブル | 1 | 3.5mm 3極 ミニプラグ ステレオ オーディオ ケーブル (L型プラグ 推奨) |
